What it does
MCUXpresso IDE is an Eclipse-based development environment used with NXP's MCUXpresso SDK. Its documented workflow starts with a board-specific SDK package and example project, then uses the IDE to build, program and debug the example on a connected target. The IDE is therefore a focused embedded-development environment, not the SDK itself or NXP's separate Visual Studio Code option.
Import and debug an SDK example
The official guide starts with a workspace outside the SDK tree. Install the SDK package by dragging its ZIP file into the Installed SDKs view, then use the Quickstart Panel's Import SDK example(s) action to bring in an example for the selected board. Choose a build target such as Debug or Release and build the project.
To run the firmware on hardware, connect the board, install its debug-probe driver and launch a debug session from the Quickstart Panel. The first session asks which attached probe to use; later sessions can reuse the selection. The same guide covers single-core, multicore and TrustZone examples. A useful first task is the board's hello_world sample, but it requires the matching SDK package and physical board/debug setup to demonstrate execution.

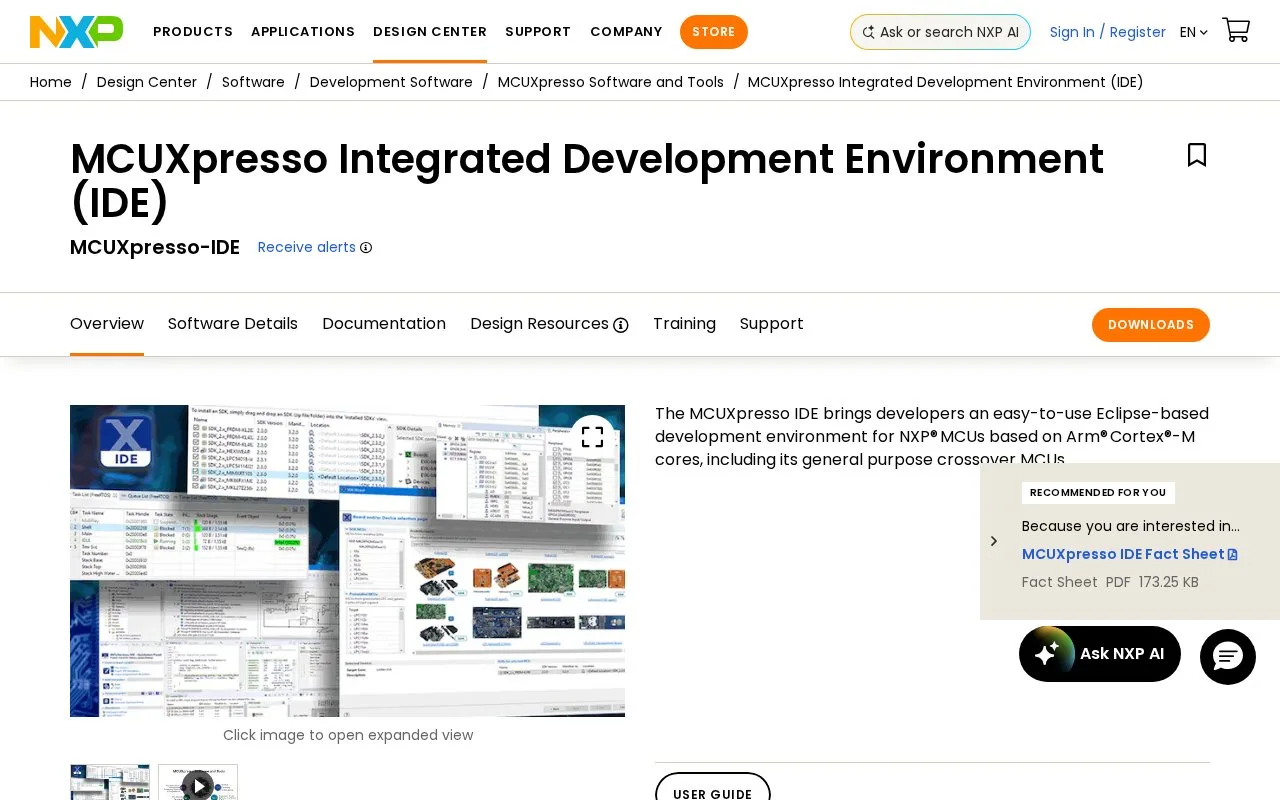

NXP describes the IDE as Eclipse-based, with syntax coloring, an SDK selection tool, integrated configuration and flash tools, and debugger views for registers and variables. The current product page lists Windows 10/11, macOS 14.x/15.x, and Ubuntu 22.04/24.04 LTS as host systems. It also notes that SDK v25.06 requires IDE v25.06 or later, so check the version pairing before importing a newer SDK package.
Strengths
- The IDE imports board-specific examples from the MCUXpresso SDK and documents a direct build-and-debug path.
- The workflow covers single-core projects as well as multicore and TrustZone examples.
Watch out for
- The documented hardware workflow needs a matching SDK package, target board and installed debugger driver; a connected probe is needed to debug the device.
Best for
- NXP MCU developers bringing up a board-specific SDK example before adapting it into firmware.
- Embedded teams that need to build and debug NXP SDK projects, including multicore or TrustZone examples.
Sources
- Run a demo using MCUXpresso IDE (Oct 25, 2026)
- MCUXpresso SDK Documentation (Oct 25, 2026)
- Free Professional ARM Development Tools | NXP Semiconductors (Oct 26, 2026)
