What it does
PlantUML turns a compact text description into a diagram, including sequence, use case, class, activity, component, and deployment diagrams. Because the source is plain text, teams can keep diagrams beside code or documentation and revise them through ordinary text edits. You can explore the syntax through the official online server or use the downloadable Java application locally. It is aimed at developers and technical teams who prefer versionable diagram source over manually arranging every shape.

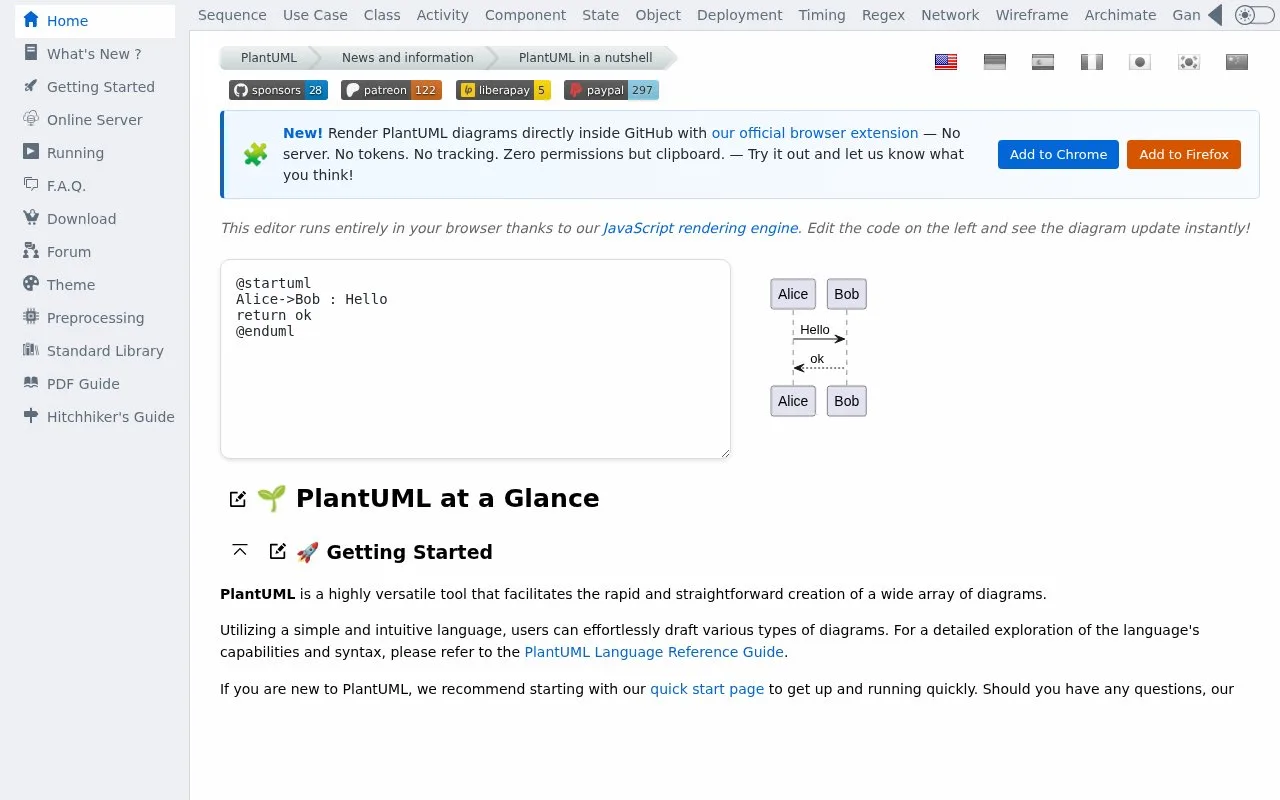

PlantUML makes a diagram a source file rather than a drawing canvas. For a first sequence diagram, define the participants and a message in a .puml file, then render that text with PlantUML or try the syntax on the official online server. The official guide's small example is:
@startuml
Alice -> Bob: test
@enduml
The sequence-diagram guide explains that PlantUML lays out participants, messages, spacing, and arrows from the text. This makes a diagram practical to keep next to the code or design notes it describes: changing a message or participant is a text edit, and the source can be reviewed with the rest of the project. The project supports more than sequence diagrams, including use case, class, activity, component, state, and deployment views.
Choose a rendering path
The official quick start suggests trying the online server first. For a local workflow, download the Java archive; the guide recommends Java 11 or newer, with a Java 8 build available for older environments. Graphviz is needed only for some diagram types. If a diagram contains internal architecture details, prefer a local renderer unless you are comfortable sending its source to a hosted service.
PlantUML is open source, but the official download page lists multiple licensing builds and notes that they do not all include the same features. Check the specific build and its terms before embedding it in a product or distributing it. The license page states that generated diagram images are not covered by the software license unless the diagram source itself is under that license.
Strengths
- Diagram source is plain text that can be stored and reviewed alongside code or documentation.
- Supports multiple technical diagram types, with text-driven layout for sequence diagrams.
- Offers both an official online server for exploration and a downloadable local Java application.
Watch out for
- Local rendering requires Java, and some diagram types also need Graphviz.
- The download page lists builds with different licenses and feature sets, so users need to select and review the correct package.
Best for
- Keeping sequence or architecture diagrams versioned with a software project
- Updating diagrams through text edits during design and review
- Generating technical diagrams from documentation source
